Introduction
In the ever-evolving world of additive manufacturing, Fused Deposition Modeling (FDM) stands out as a pivotal technology that has transformed the way industries prototype, design, and produce components. Originally developed for rapid prototyping, FDM has matured into a robust tool for industrial applications. The key to its growing utility lies in achieving precision in layers, a hallmark of high-performance industrial 3D printing. This article explores the engineering strategies, technological enhancements, and practical considerations required to optimize FDM for precise and reliable industrial manufacturing.
Understanding FDM Technology

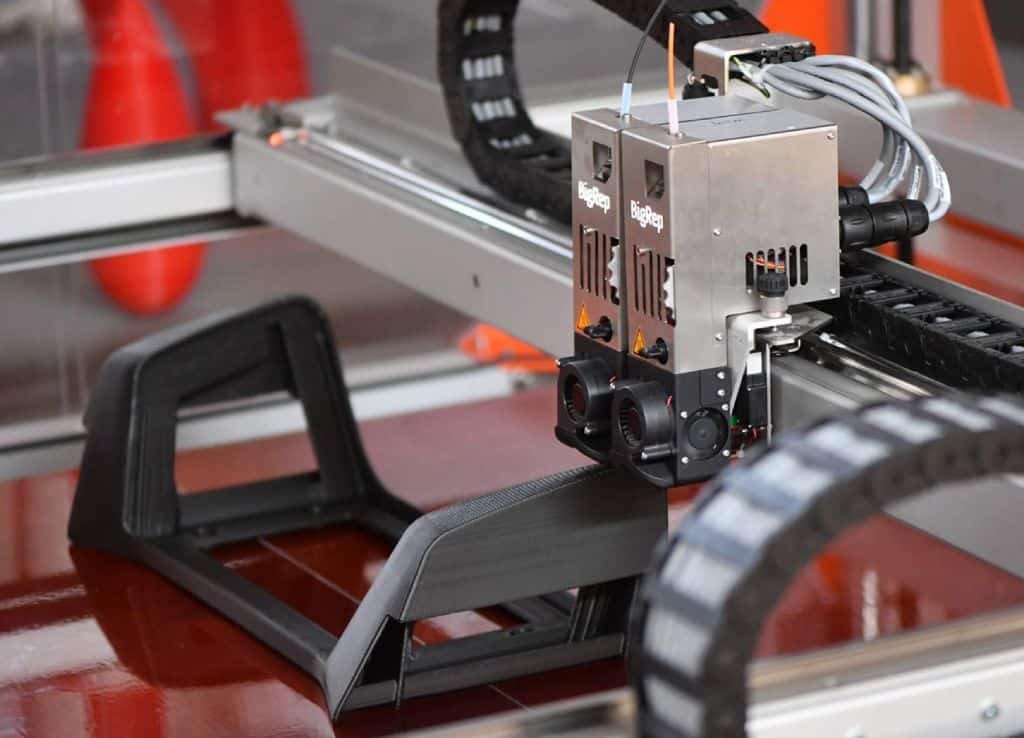

Fused Deposition Modeling (FDM) is a layer-by-layer additive manufacturing technique that involves extruding a thermoplastic filament through a heated nozzle. As the nozzle moves, it deposits molten material onto a build platform, where it cools and solidifies. Successive layers are added to build a complete 3D object.
Core Components of FDM:
- Extruder and Nozzle: Controls the flow and placement of filament.
- Heated Build Plate: Ensures proper adhesion of the first layer and reduces warping.
- Motion System: Dictates precision of movement across X, Y, and Z axes.
- Control Software: Translates 3D models into precise toolpaths.
Importance of Precision in Industrial Applications
Precision in FDM is critical for industrial applications where component accuracy, repeatability, and mechanical integrity are essential. Fields such as aerospace, automotive, medical devices, and consumer electronics demand parts with tight tolerances and consistent performance.
Key Benefits of Precision:
- Dimensional Accuracy: Ensures components fit within complex assemblies.
- Surface Finish: Enhances mechanical properties and aesthetic appeal.
- Material Efficiency: Reduces waste and optimizes material usage.
- Post-Processing Reduction: Minimizes the need for additional machining or sanding.
Engineering Precision in FDM
Achieving precision in industrial FDM printing involves a combination of hardware design, software algorithms, material science, and process control. Let’s explore these in detail:
1. Hardware Optimization
a. High-Resolution Nozzles
Industrial FDM machines use nozzles with diameters as small as 0.2 mm, enabling finer details and more accurate layer deposition. However, smaller nozzles may slow down printing, requiring a balance between speed and detail.
b. Rigid Frame and Gantry Systems
Mechanical stability is essential. High-quality industrial FDM printers use rigid aluminum or steel frames and precision linear rails to eliminate vibration and maintain positional accuracy.
c. Advanced Extrusion Systems
Dual-drive extruders with filament sensors, controlled retraction mechanisms, and active cooling enhance material flow, prevent clogs, and reduce oozing or stringing, all of which contribute to layer precision.
2. Software and Slicing Technology
a. Adaptive Layer Height
Modern slicers can adjust layer height based on geometry complexity, allowing finer layers in detailed sections and thicker layers in simple areas. This not only improves accuracy but also reduces print time.
b. Thermal Management Algorithms
Software-controlled temperature modulation minimizes warping and delamination by adjusting build plate and nozzle temperatures based on layer height and part geometry.
c. Advanced Toolpath Planning
Toolpaths are now optimized using AI-based algorithms that account for shrinkage, overhangs, and support structures, leading to smoother surfaces and better fit.
3. Material Advancements
a. High-Performance Thermoplastics
Materials such as PEEK, ULTEM, and carbon fiber-reinforced polymers are engineered for strength, heat resistance, and dimensional stability. These materials are key in aerospace and automotive industries.
b. Filament Consistency
Precision in FDM also depends on filament quality. Tightly controlled filament diameter (within ±0.05 mm) ensures uniform extrusion and consistent layer height.
c. Hygroscopic Control
Many high-performance materials are hygroscopic (they absorb moisture), which affects print quality. Dry storage and filament dryers are essential for maintaining precision.
4. Environmental Control
a. Enclosed Chambers
Industrial FDM printers often include temperature-controlled build chambers, reducing thermal gradients that can cause warping and delamination.
b. Air Filtration Systems
HEPA and activated carbon filters protect the environment from emissions and improve print reliability by stabilizing the microclimate within the chamber.
Quality Assurance and Calibration
Consistent precision requires rigorous quality assurance and machine calibration. Key practices include:
a. Bed Leveling and Z-Axis Calibration
Proper first-layer adhesion is crucial. Automated leveling systems ensure the nozzle distance from the bed is accurate across the entire print surface.
b. Extrusion Calibration
Calibrating flow rate, retraction, and temperature settings helps maintain a consistent material deposition rate, avoiding under- or over-extrusion.
c. Dimensional Validation
Post-print validation using calipers, laser scanners, or CT imaging ensures that prints meet dimensional specifications.
Industrial Use Cases
1. Aerospace Industry
FDM is used to produce lightweight ducting, housings, and tooling. Precision ensures parts meet strict performance standards.
2. Automotive Prototyping
Complex components like manifolds, brackets, and interior panels are printed with high accuracy, speeding up product development.
3. Medical Devices
Custom orthotics, prosthetics, and surgical guides require tight tolerances and biocompatible materials, all made possible by precision FDM.
4. Manufacturing Tooling
Jigs, fixtures, and custom tools produced using FDM reduce lead times and costs, especially when high accuracy is maintained.
Future of Precision in FDM
The future of industrial FDM lies in further improving automation, artificial intelligence, and materials engineering. Emerging trends include:
a. AI-Driven Error Detection
Real-time monitoring systems using computer vision and machine learning can detect print defects early and self-correct them.
b. Closed-Loop Control Systems
Sensors that monitor temperature, extrusion pressure, and part deformation can feed data into a feedback loop for dynamic adjustment.
c. Multimaterial Printing
Developments in dual and triple extruders allow for gradient materials and functional prints, expanding industrial applications.
d. Eco-Friendly Materials
The drive for sustainable manufacturing is pushing the development of recyclable and biodegradable filaments that don’t compromise on precision.
Conclusion
Precision in FDM is no longer a luxury but a necessity in modern industrial manufacturing. By engineering every aspect of the process—from hardware and software to materials and environmental controls—manufacturers can achieve the high accuracy and consistency required for demanding applications. As technology advances, FDM will continue to evolve, offering even greater capabilities and pushing the boundaries of what’s possible in additive manufacturing. For industries looking to capitalize on rapid production without sacrificing quality, mastering precision in layers is the path forward.
