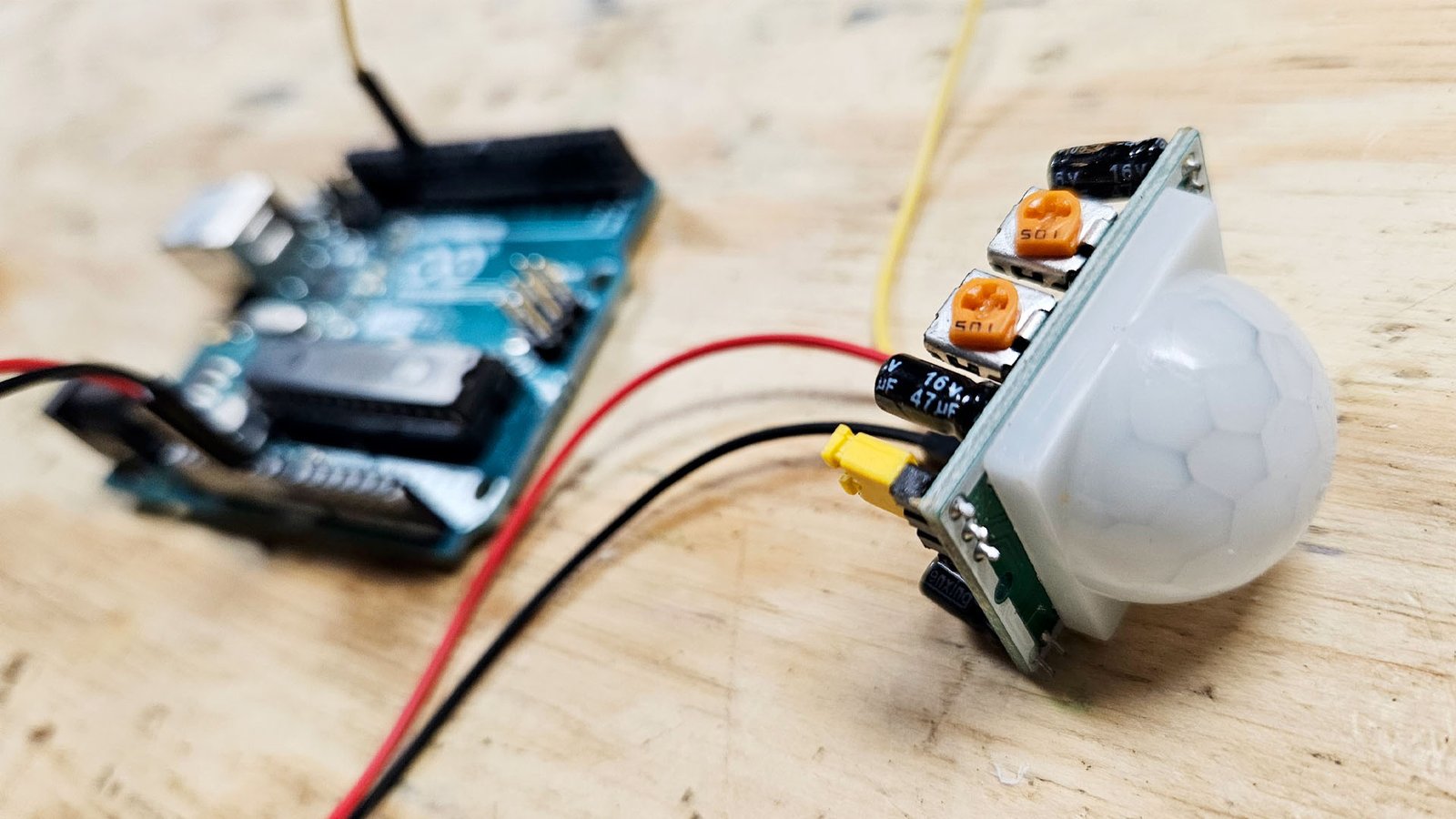

Understanding the TZT HC-SR501 PIR Motion Sensor

In the realm of electronics and DIY projects, the ability to detect motion is incredibly useful. From home automation systems to security alarms and lighting controls, motion sensors play a crucial role in modern electronics. One of the most popular motion sensors used by hobbyists and professionals alike is the TZT HC-SR501 PIR Motion Sensor. This affordable and reliable component is a staple in Arduino and Raspberry Pi projects, offering powerful functionality in a compact form.

In this article, we will explore the TZT HC-SR501 in depth—its working principle, specifications, applications, and how to integrate it into your electronics projects.

What is a TZT HC-SR501 PIR Motion Sensor?

PIR stands for Passive Infrared. Unlike active sensors that emit energy to detect motion, PIR sensors detect infrared radiation naturally emitted by humans and animals. All objects with a temperature above absolute zero emit some level of infrared radiation, and the PIR sensor captures changes in infrared levels in its field of view to detect movement.

When a warm body like a human or pet passes in front of the sensor, the change in infrared energy is registered as motion.

Overview of the TZT HC-SR501

The TZT HC-SR501 PIR is one of the most widely used PIR motion detectors. It is manufactured by several companies, with “TZT” often indicating a specific seller or brand variant of the HC-SR501 model. Regardless of the source, the core functionality remains consistent.

Key Features

• Voltage Supply: 4.5V to 20V DC

• Detection Range: 3 to 7 meters (adjustable)

• Detection Angle: 120 degrees

• Output Signal: High (3.3V) when motion is detected

• Idle Output: Low (0V)

• Trigger Modes: Repeatable and Non-repeatable

• Delay Time: 0.3s to 300s (adjustable)

• Working Temperature: -15°C to +70°C

These specifications make the HC-SR501 ideal for indoor motion detection in a wide variety of low-power embedded applications.

How It Works

The TZT HC-SR501 PIR relies on a pyroelectric sensor to detect infrared radiation. The sensor element consists of two slots made of a special material that is sensitive to IR radiation. When the sensor is idle, both slots detect the same amount of infrared radiation. When a person or animal moves across the sensor’s field of view, it causes a difference in infrared radiation between the two slots. This difference is detected and converted into an electrical signal.

Components on the Module

1. Pyroelectric Sensor: The core component that detects infrared radiation.

2. Fresnel Lens: A dome-shaped lens that focuses the IR signals onto the pyroelectric sensor, expanding the effective detection range and angle.

3. BISS0001 IC: This chip processes the signal from the sensor and controls the output logic.

4. Adjustable Potentiometers: Used to set the delay time and sensitivity.

5. Jumper Cap: Allows you to select between the trigger modes (repeatable or non-repeatable).

6. Voltage Regulator: Ensures the module operates within its designed voltage limits.

Trigger Modes Explained

The TZT HC-SR501 provides two trigger modes:

1. Non-Repeatable Trigger (Single Trigger Mode)

• Behavior: The output goes HIGH when motion is detected and stays HIGH for the duration of the delay time. It does not reset even if motion continues.

• Use Case: Ideal when you want the sensor to detect motion once and then ignore subsequent motion until the delay period has ended.

2. Repeatable Trigger

• Behavior: The output remains HIGH as long as motion is detected. The delay timer resets with each new motion.

• Use Case: Useful for applications like lighting systems that should remain ON while motion continues.

You can switch between these modes using the jumper on the module.

Adjusting the Sensor

The HC-SR501 has two potentiometers:

1. Sensitivity (Distance Adjustment)

   • Adjusts how far the sensor can detect motion.

   • Turning clockwise increases the range.

2. Delay Time Adjustment

   • Sets how long the output remains HIGH after detecting motion.

   • Turning clockwise increases the delay time (up to ~5 minutes).

These adjustments make the sensor highly versatile and customizable to your specific application.

Wiring and Integration

The module has a simple 3-pin interface:

• VCC: Connects to 5V (though the module can accept 4.5V to 20V).

• GND: Ground.

• OUT: Output pin that goes HIGH when motion is detected.

Arduino Example

This basic code lights up the onboard LED when motion is detected and logs the event to the serial monitor.

Applications of the TZT HC-SR501 PIR

Thanks to its affordability, ease of use, and reliable performance, the HC-SR501 is used in a wide variety of applications:

1. Home Security Systems

Used to detect intruders and trigger alarms or alert systems when motion is detected inside or outside a house.

2. Automatic Lighting Systems

Turns lights on when a person enters a room or hallway and turns them off after a delay when no motion is detected.

3. Smart Doorbells and Intercoms

Activates a camera or intercom system when someone approaches the door.

4. Energy-Efficient HVAC Systems

Used to determine room occupancy for controlling heating and cooling systems.

5. Robotics

Helps robots detect the presence of humans or obstacles based on motion.

6. Retail Analytics

Detects customer movement in stores for traffic flow analysis and customer behavior insights.

Limitations and Considerations

While the HC-SR501 is highly useful, it’s important to understand its limitations:

1. Line of Sight Requirement

   • The sensor cannot detect motion behind walls or objects. It requires a clear line of sight.

2. Environmental Interference

   • Excessive heat sources, sunlight, or rapid temperature changes can cause false positives.

3. Slow Detection for Stationary Objects

   • The sensor only detects motion, not presence. A person standing still may not be detected after the initial motion.

4. Limited Precision

   • While adjustable, the range and detection angle are not very precise for high-resolution applications.

Best Practices for Use

• Avoid Direct Sunlight: Mount the sensor in shaded areas to avoid false triggers.

• Position Strategically: Place at corners for wider coverage, ideally 6 to 8 feet above the ground.

• Test Before Deployment: Use trial runs to adjust sensitivity and delay times according to your application.

• Shield from Drafts: Heating vents or fans may cause inconsistent readings due to infrared fluctuations.

Conclusion

The TZT HC-SR501 PIR Motion Sensor is a highly reliable and accessible tool for detecting human or animal motion. Whether you’re building a DIY home automation system, a robotics project, or a security device, the HC-SR501 offers the right balance of cost, performance, and ease of use.

By understanding its working principles, adjusting its parameters, and integrating it properly into your circuits, you can take full advantage of this sensor’s capabilities. Despite a few limitations, it remains one of the best choices for basic motion detection needs in electronics and embedded systems.

So the next time you want your lights to turn on automatically, or your security alarm to catch an intruder, remember that the humble TZT HC-SR501 might be the perfect sensor for the job.
